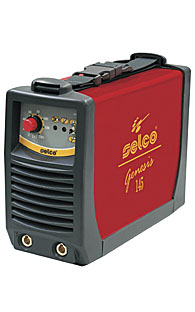

Genesis 145

The new Genesis 145 inverter power source optimises the previous model Genesis 140 on the basis of the company’s extensive experience, implementing a number of technical improvements that keep this power source at the top of its category:
- it is possible to weld both with coated electrodes (MMA) and with tungsten infusible electrodes (TIG) with contact start, with delivery of 145 Amps at 35% at 40°C.

- welding performances have been improved with the rutilic electrodes and optimised with the electrodes for aluminium.
The Genesis 145 model is compact and strong because it is made from quality materials that have been accurately selected and chosen for their resistance characteristics to mechanical forces and impact (ABS self-extinguishing).

The model Genesis 145 fully meets the requirements of the European Standard EN60974-1 (equivalent to the International Standard IEC974-1) concerning electrical safety of welders and the stringent European Standard EN50199 concerning electromagnetic compatibility; application of these standards makes the welder compliant with the Community Directives and ensures maximum operator safety during use.
  Technical data
Voltage
Fuse
Welding current
Adjustment range
Open circuit voltage
Protection rating
Insulation class
Dimensions
mm
Weight Kg


230 V

16 A

35%

145 A

5-145 A

62 V

IP 23 C

H

110x280x220

4,1

60%

120 A

100%

100 A

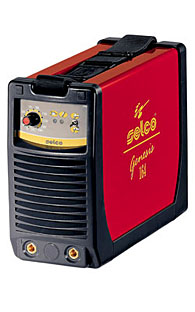

Genises 164

The Genesis 164 delivers a welding current of 160 Amps with a duty cycle of 40% at ambient temperature of 40° C.
Inverter technology and precise construction ensure safety and reliability and a stable, accurate welding arc in every operational situation. When it is used outside the nominal parameters, a thermal cut-out protects the welder from malfunction.

The Genesis 164 is specially designed for welding applications using basic metal, rutile, stainless steel, aluminium, and cast iron electrodes of up to 4.0 mm in diameter.

TIG LIFT welding is the ideal process for all applications requiring top quality and maximum precision, even with thin sheet.
  Technical data
Voltage
Fuse
Welding current
Adjustment range
Open circuit voltage
Protection rating
Insulation class
Dimensions
mm
Weight Kg

230 V

16 A

40%

160 A

5-160 A

54 V

IP 23 C

H

130x310x250

6,9

60%

130 A

100%

120 A
